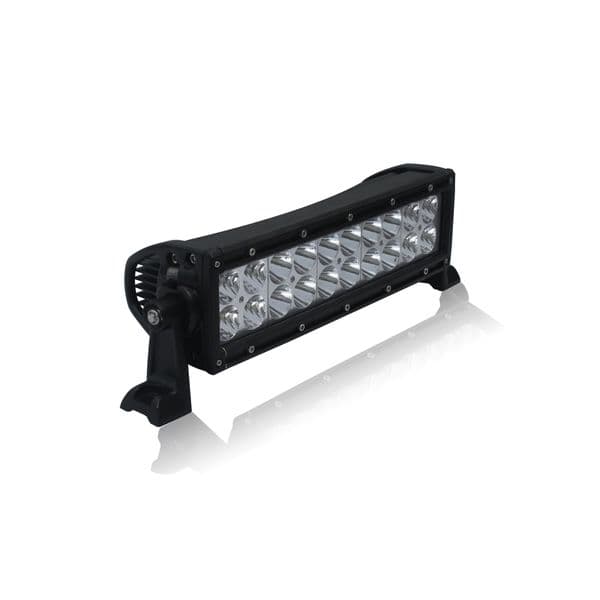

WILDERNESS LIGHTING DUPLEX CURVE 10"
Our Duplex Curve 10" Light is based on our very popular Duplex lights and has been designed with a gentle arc to the aluminium housing to increase the light spread. They share all the same qualities and features as the Duplex range of lights and this light produces a massive 5600 Lumens of light from 20 x 5 watt OSLON white LED chips giving visible beam distance of 920m. The low energy consumption technology means they only consume 4.1 amps of power. Compare these figures to a standard 55 watt halogen light found on many vehicles which produce only 900 lumens of light while drawing a massive 8 amps of power.
These lights not only look good but they are also very tough..... with a market leading water and dust ingress rating of IP69K meaning you can actually wash the lights with a high pressure spray with a temperature of up to 90 degrees - this rating is the highest level achievable and usually found within the food industry for sterilising products. As the lights are fully water and dust proof they would be equally comfortable mounted on a boat and can be fully submersed in water for long periods.
The curved housing of the light is made of weather-resistant and waterproof aluminium and coated with a UV-resistant paint to prevent chipping and fading for a lasting finish. The standard colour is black however we can supply these in a marine white finish or yellow finish usually found within the quarry industries. Custom paint colours can also done at extra cost . The lenses used are equally hardwearing as its aluminium housing. The 3mm Lexan lens are optically transparent despite being unbreakable and scratch-resistant.
All our lights come with a water proof Deutsche connector on the light together with a full wiring harness including switch, power surge protection, relay and ring battery connections. The loom can be used to run the lights in a matter of seconds on a temporary basis or the components can be used on existing vehicle wiring for a permanent fix.
As with all our lights they are made to be used and abused.... we are so confident in the durability and build quality we offer a 3 year replacement guarantee, should your light stop working within the 3 years we will replace it free of charge.
- 10 inch Duplex Curve double row light bar
- 20 x 5 watt OSLON white LED chips - 100 watts
- Massive 5,600 LM of light produced while drawing only 4.1 Amps
- Combination reflective beam pattern - Flood & spot within the unit
- Combination light beam distance - 920m
- Natural white & Amber light option
- 50,000+ hour lifespan
- 5 years continuous use
- 94% optical reflector efficiency
- Unbreakable & scratch resistant lens on both sides
- 6063 Aluminum housing
- Durable UV resistant painting technology
- 9-36 Volt DC input
- Low power consumption
- Instant on/off, no warm up
- Over/under voltage protection
- Sealed waterproof connector
- Operating temp -40 ~ +145 deg
- IP69K Rating (water & dust proof at high pressure & high temperatures)
- CE & Rohs certification
- MIL810-STDG vibration certified
- Shock proof
- Salt & fog certified
- Waterproof housing
- Off road use only
